Catching “Hydrogen Spillover” onto a Catalytic Surface

SCIENTIFIC ACHIEVEMENT

Researchers uncovered the precise mechanism of hydrogen spillover (H₂ splitting and migration) onto a catalytic surface by watching it happen under various conditions at the Advanced Light Source (ALS).

SIGNIFICANCE AND IMPACT

The research lays the foundation for designing more efficient catalysts and storage materials essential for next-generation hydrogen energy technologies.

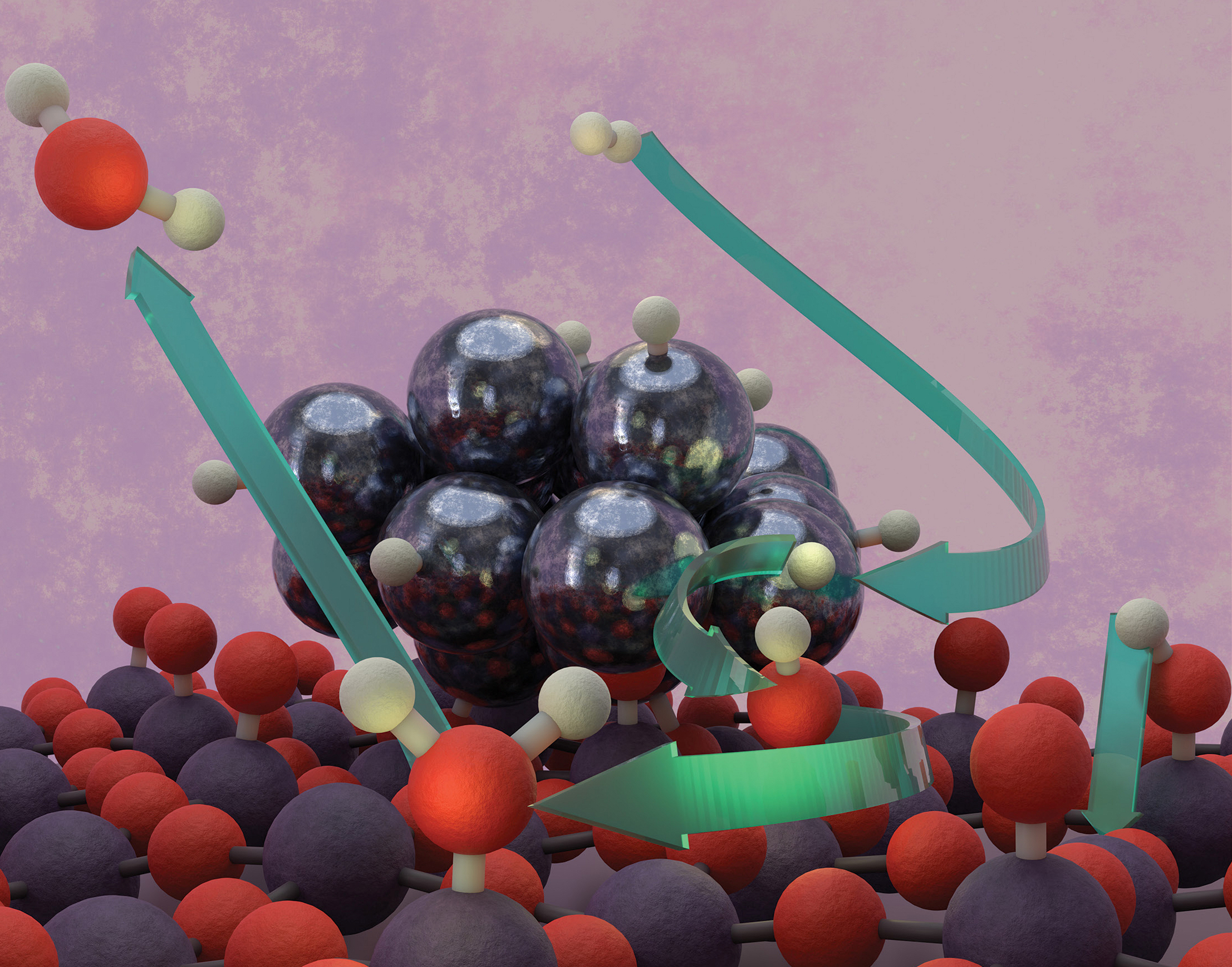

Three-dimensional ball-and-stick depiction of a tungsten trioxide surface, a platinum nanocluster, and the steps of hydrogen spillover. — Artistic depiction of a tungsten trioxide (WO₃) surface (purple/red) “decorated” with a platinum nanocluster (metallic gray). Green arrows trace the evolution of hydrogen (white) from gas form (H₂) to dissociation into H⁺ on the platinum, to spillover (migration) onto the WO₃ surface, and, at elevated temperatures, desorption as water vapor (H₂O) and diffusion into the bulk.

Hydrogen on the move

The splitting and migration of molecular hydrogen (H₂) over a catalytic surface (a process known as “hydrogen spillover”) is a fundamental yet elusive phenomenon in catalysis that affects a wide range of uses, from hydrogenation (which can be used to upgrade or purify crude oil components) to energy storage (when bonded to a metal, hydrogen can be stored in the solid state). Despite its importance, direct experimental evidence capturing the real-time mechanistic steps of hydrogen spillover remains scarce.

In particular, tungsten oxide (WO₃), a widely used catalytic material, exhibits dynamic interactions with hydrogen, yet the precise nature of these interactions has been a subject of long-standing debate, especially for distinguishing the chemical dynamics occurring on the surface from those in the bulk.

This research was driven by the need to resolve these ambiguities using ambient-pressure x-ray photoelectron spectroscopy (APXPS), which provides direct spectroscopic evidence of the spillover process as it unfolds. By integrating experimental observations with theoretical models, the researchers unlocked a comprehensive understanding of how hydrogen interacts with reducible oxide surfaces and influences their catalytic properties.

Operando APXPS at the ALS

This study focused on WO₃ thin films “decorated” with Pt metal clusters that facilitate hydrogen activation and dissociation. To directly visualize the stepwise evolution of hydrogen spillover on WO₃, the researchers employed APXPS at ALS Beamline 9.3.2, a technique pioneered at the ALS and uniquely suited for studying solid–gas interfaces in real time under realistic (“operando”) reaction conditions.

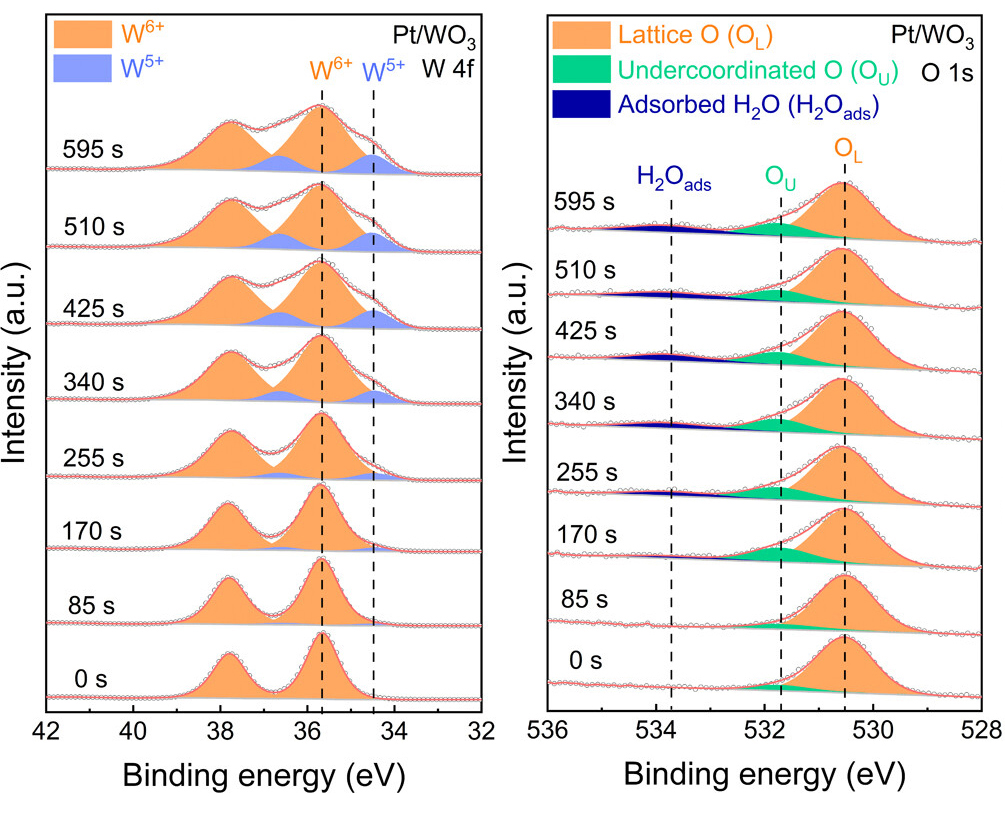

Two panels show APXPS spectra, for tungsten 4f photoelectrons on the left, and oxygen 1s photoelectrons on the right. Each panel includes eight stacked spectra, taken at eight different times at intervals of 85 seconds (from 0 to 595 seconds). Over time, there is clear growth in the peaks signifying hydrogen spillover. — APXPS of W 4f (left) and O 1s (right) photoelectrons. The W⁵⁺ (purple), adsorbed water (blue), and undercoordinated oxygen (green) are signs of hydrogen spillover.

APXPS detected the oxidation states of tungsten and the presence of surface hydrogen species as the samples were exposed over time to hydrogen gas at various temperatures. The tunable incident photon energy allowed selective analysis of different elements (including differentiating between various hydrogen species—molecular, protonic, or hydride-like) at variable depths, enabling the researchers to track hydrogen-induced changes with high precision. The ability to collect real-time spectra while exposing the sample to hydrogen enabled the detection of intermediates that would be difficult to observe with other methods.

Furthermore, by combining the APXPS experimental observations with first-principles-based microkinetic modeling and simulations, the researchers gained a comprehensive understanding of the reaction mechanisms underlying hydrogen spillover.

Spectroscopic signals of spillover

The APXPS spectra revealed real-time shifts in the tungsten oxidation states, directly visualizing the stepwise tungsten reduction process associated with hydrogen spillover. Additionally, the emergence of hydroxyl and adsorbed water signatures confirms the formation of hydrogen spillover products, highlighting the coexistence of spillover pathways that involve both protons and electrons.

Temperature- and depth-dependent APXPS, in conjunction with modeling and theoretical analysis, revealed three different temperature-dependent reaction processes, resulting from the interplay between rates of hydrogen spillover (and its reverse), H⁺ diffusion to the bulk, and water desorption.

A surprising finding was that the spatial placement of Pt—on top or beneath the WO₃ thin film—had no effect on the occurrence of hydrogen spillover, indicating that WO₃ does not initiate hydrogen activation but serves as a conduit for hydrogen migration. Overall, the results provide a comprehensive understanding of the reaction mechanisms underlying hydrogen spillover on reducible metal oxides, offering valuable insights into the control of catalytic hydrogen-related transformations.

Photo of three men and one woman smiling and standing in front of complicated scientific equipment, covered in foil and strewn with chains and colored cables. — Co-authors Ethan Crumlin, Jay R. Paudel, Mona Abdelgaid, and Haoyi Li at ALS Beamline 9.3.2.

Contact: Ethan Crumlin

Researchers: H. Li and J.R. Paudel (Berkeley Lab), M. Abdelgaid and J.R. McKone (University of Pittsburgh), N.P. Holzapfel and V. Augustyn (North Carolina State University), G. Mpourmpakis (University of Pittsburgh and National Technical University of Athens, Greece), and E.J. Crumlin (Berkeley Lab and ALS).

Funding: US Department of Energy, Office of Science, Basic Energy Sciences program (DOE BES); Center for Research Computing at the University of Pittsburgh; and National Science Foundation. Operation of the ALS is supported by DOE BES.

Publication: H. Li, M. Abdelgaid, J.R. Paudel, N.P. Holzapfel, V. Augustyn, J.R. McKone, G. Mpourmpakis, and E.J. Crumlin, “Operando unveiling of hydrogen spillover mechanisms on tungsten oxide surfaces,” J. Am. Chem. Soc. 147, 6472 (2025), doi:10.1021/jacs.4c13711.
